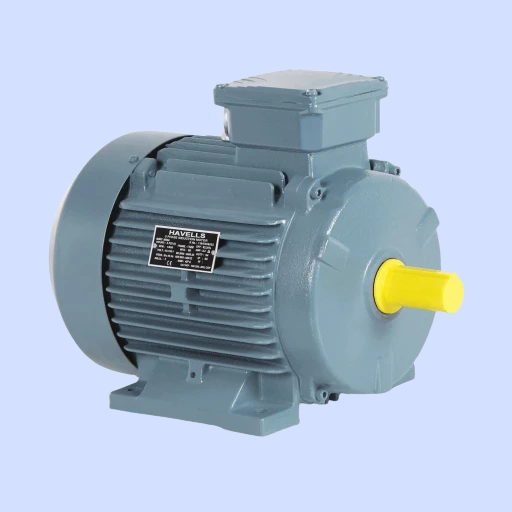

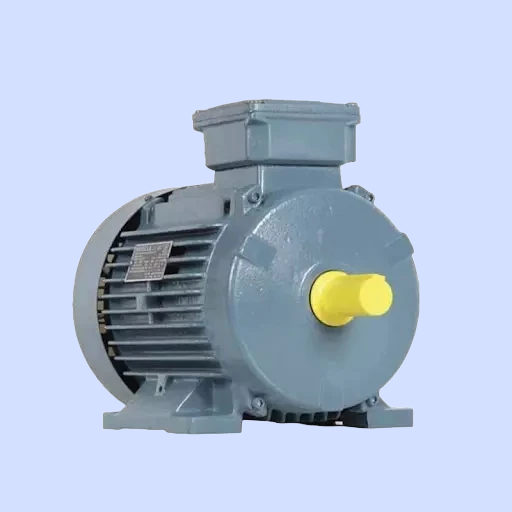

Havells Electric Motor
3HP Three Phase Four Pole Squirrel Cage Foot Mounted Induction Motor
₹7000.00₹6500.00
Key Features
Duty: S1.
With Temperature Rise Limited to Class B.
Cooling Method: Totally Enclosed Fan Cooled (TEFC).
Product Specifications
Brand | |
Motor Power | 3 HP |
Mounting type | Foot Mounted |
Power Rating | 2.2 kW |
Altitude | Upto 1000 m |
Ambient Temperature | 50 deg C |
Cage type | Squirrel Cage |
Class of insulation | F |
Direction of Rotation | Bi-Directional |
Efficiency | IE2 |
Frame Size | MHCITGS402X2 |
Frequency | 50 Hz |
Item Code | MHCITGS402X2 |
Number of Poles | 4 |
Protection Class | IP55 |
Relative Humidity | Upto 100% RH |
Speed | 1500 rpm |
Voltage | 415 V |
Phase | Three Phase |
Standards | IS 12615:2014 IEC 60034-30-2014 |
Country of origin | India |
SHOW MORE | |
Product Details:
Havells General Purpose Motors are the perfect fit for a wide variety of industrial applications. With an efficiency rating of IE2, these motors are designed to optimize energy usage and cut down on electricity costs. At a speed of 1500 rpm and voltage of 415 V, Havells' motors are built to offer high performance and reliable operation. With a power rating of 2.2 kW and four poles, these motors are ideal for heavy-duty applications. The mounting type is Foot Mounted, allowing for easy installation in any industrial setting. These motors are designed to withstand challenging ambient temperatures of up to 50 deg C, and they can function effectively in environments with relative humidity of up to 100% RH. The direction of rotation is bi-directional, allowing for more flexibility in operation. With an altitude limit of up to 1000 m, these motors can be used in a wide range of locations.
Browse through the extensive list of General Purpose Motors at Perfect Engineering Solutions. Shop online for other Havells General Purpose Motors. available at Perfect Engineering Solutions in the lowest price range.
